3'' Deep Well Submersible Pump

3'' Deep Well Submersible Pump

(SDM) 3"deep well submersible pump Performance Range Max.Flow: 3.6m³/h Max.Head:142m Technical Data Certificate Operating Conditions 1.Max.ambient temperature<40°c. 2.Sand content(in mass fraction)up to 0.01%. 3.Hydrogen sulfide content up to 1.5mg/L,chloride ion content up to 400mg/L....

Send Inquiry
Product Details

(SDM) 3"deep well submersible pump



Performance Range

Max.Flow: 3.6m³/h

Max.Head:142m

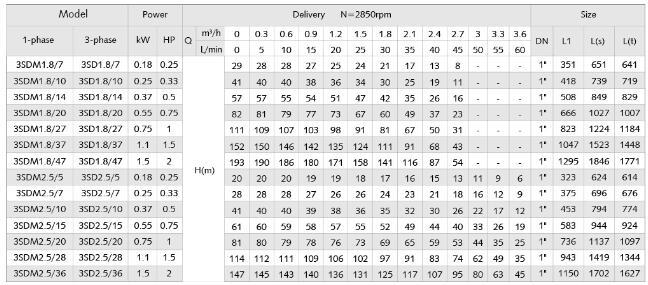

Technical Data



Certificate



Operating Conditions

1.Max.ambient temperature<40°c.

2.Sand content(in mass fraction)up to 0.01%.

3.Hydrogen sulfide content up to 1.5mg/L,chloride ion content up to 400mg/L.

4.PH 6.5-8.5.

5.Maximum:70m below the static water table.


Application Field

1.Building /construction work /domestic water supply.

2.Irrigatuion and small water work.

3.Lanscaping.

4.Water conservancy system.

5.Factory.



Features

1.Edible oil filled motor,stable&reliable running with pressure regulating membrane.

2.Single phase motor equipped with start box which is bulit in capacitor mode thermal protector ,convenient for replacement.

3.Pump sleeve with screw thread ,single stage floating impellers.

4.Installation in 3"or larger boreholes.


Pump

Pump Body: Stainless steel

Motor Bracket: Stainless steel

Impeller: Plastic. PPO

Diffuser: Plastic. PC


Motor

Single-phase 220V/240V-50Hz with condenser and thermal overload protector built into the copper winding, equiped with start control box.

Three -phase 380V/415V.

Insulation: Class B.

Protection: IP X8.

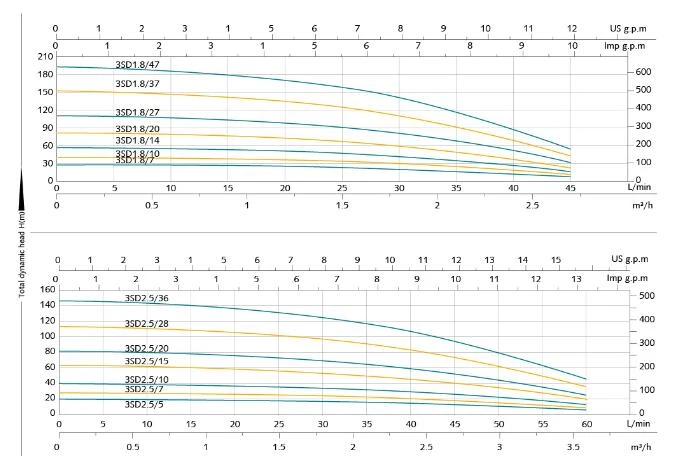

Performance Curve



Package Details

Standard Carton/ Fumigation-free wooden box


Market in present

This pump is a mature and efficient product,major customers are from Ukraine,Zimbabwe,the United States,Turkey,Brazil,Kyrgyzstan,Australia,Portugal,South Africa,Zambia,Tanzania,Middle East,Kazakhstan, Uzbekistan,etc.


FAQ

1.Where is your factory located?

Our Marketing Center:Room 3110/3111,Intime City,Jiaojiang District,Taizhou City,Zhejiang Province,China.

Two Manufacturing Base :

a.Zhejiang base: Daxi Town,Wenling County,Taizhou City,Zhejiang Province,China.

b.Jiangxi base :Dingshan Penghuwan Industrial Zone,Pengze Town,Jiujiang City,Jiangxi Province,China.


2.Which shipping port do you use more?

Ningbo or Shanghai port.


3.How long is the delivery time of your product?

Normal 30 days.


4.How is your product quality?

The high quality of our products has been sold to many countries and regions, we received great praise and recognition from our customers.We hope we can have the opportunity to cooperate with you for a long time.


About us

SHANGHAI OTONO MECHANICAL&ELECTRICAL TECHNOLOGY CO.,LTD is a professional water pump manufacturer and has more than fifteen years of experience in manufacturing and exporting water pumps.


Our factory produce more than 70 kinds of water pumps, including solar pumps, deep well pumps, economical DC pumps, submersible sewage pumps, and various kinds of water pump accessories. Every year we invest a large proportion of the funds for the purchase of equipment, new product development and manufacturing molds to ensure product quality and market fit.


Adheres to the "customer-oriented business philosophy, win-win with customers "to deal with everything and attitude; At present, our market is mainly concentrated in Asia, Europe ,Africa,Australia,and our products are trusted by local customers.
