(SPM) 5" stainless steel deep well pump



Performance Range

Max.Flow: 40m³/h

Max.Head: 330m

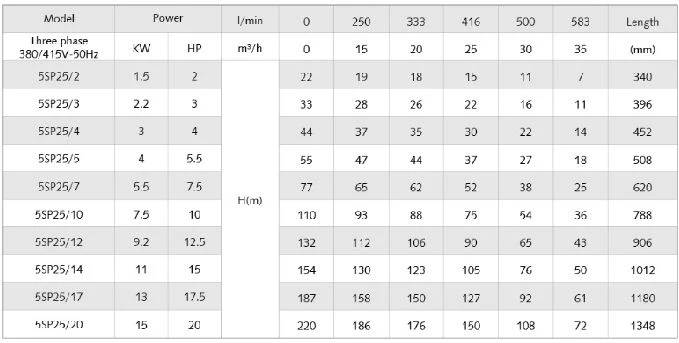

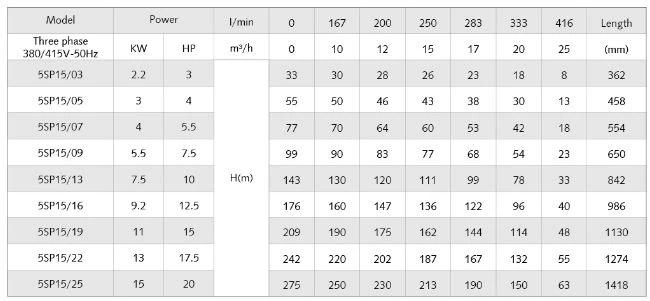

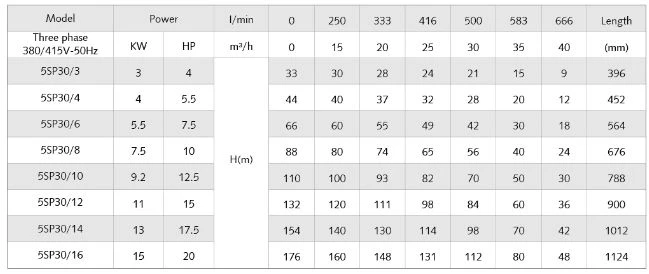

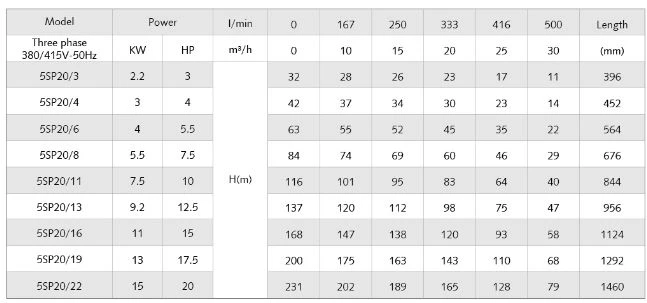

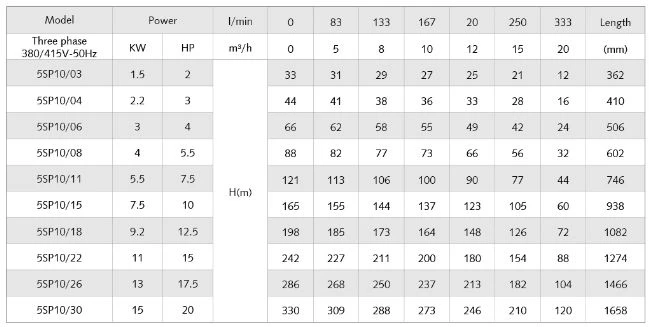

Technical Data







Certificate



Operating Conditions

1.Max.ambient temperature<40°c.

2.Sand content(in mass fraction)up to 0.01%.

3.Hydrogen sulfide content up to 1.5mg/L,chloride ion content up to 400mg/L.

4.PH 6.5-8.5.

5.Maximum:70m below the static water table.


Application Field

1.Building /construction work /domestic water supply.

2.Irrigatuion and small water work.

3.Lanscaping.

4.Water conservancy system.

5.Factory.




Features

1.Edible oil filled motor,stable&reliable running with pressure regulating membrane.

2.Single phase motor equipped with start box which is bulit in capacitor mode thermal protector ,convenient for replacement.

3.Available with steel  pump head ,effective against the corrosion and abrasive wear.

4.Installation in 5"or larger boreholes.


Pump

Pump Body: Stainless steel

Motor Bracket: Stainless steel

Impeller: Stainless steel

Diffuser: Stainless steel


Motor

Single-phase 220V/240V-50Hz with condenser and thermal overload protector built into the copper winding, equiped with start control box .

Three -phase 380V/415V

Insulation: Class B.

Protection: IP X8.

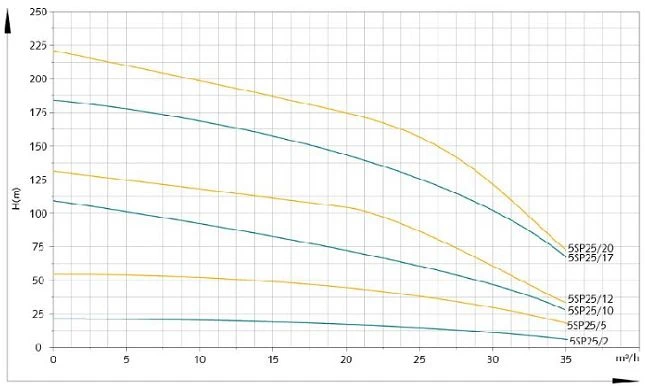

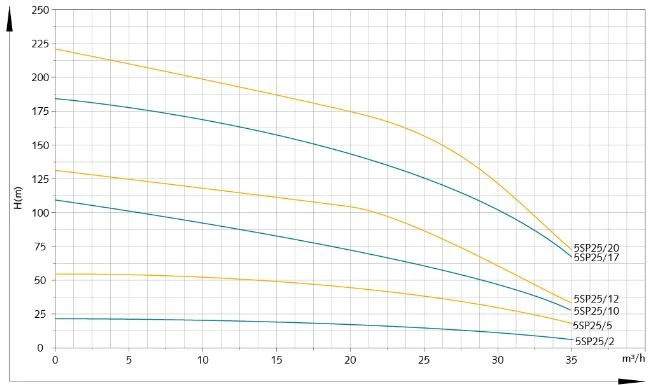

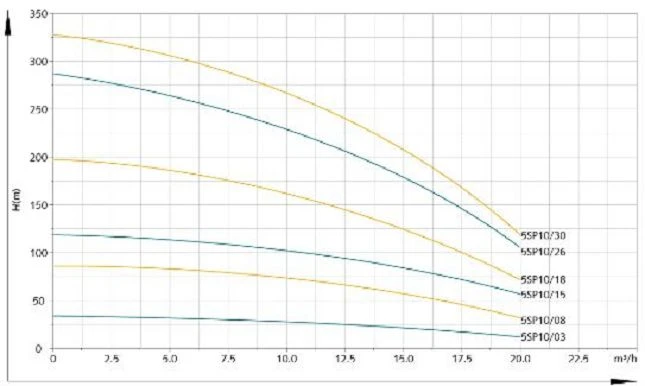

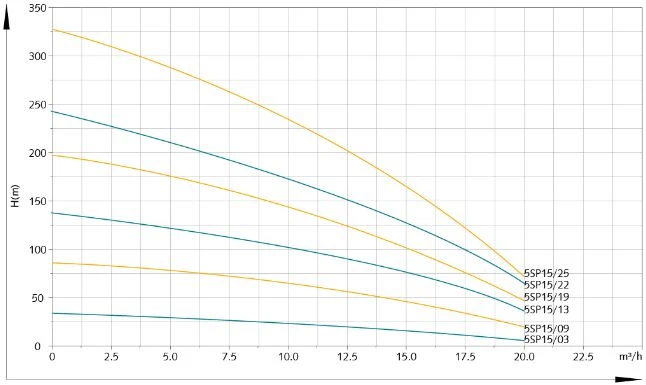

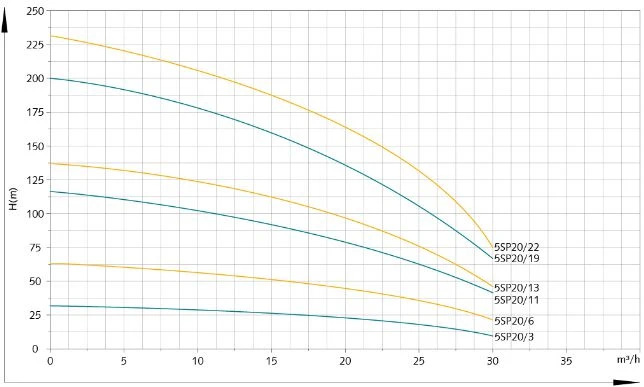

Performance Curve







Package Details

Standard Carton/ Fumigation-free wooden box


Market in present

This pump is a mature and efficient product, major customers are from Tajikistan, Uzbekistan,Ukraine, Zimbabwe,the United States,Turkey,Brazil,Kyrgyzstan,Indonesia,Laos,Afghanistan,Kazakhstan,Uzbekistan,etc.
