V sewage submersible sewage pump Performance Range Max.Flow: 18m³/h Max.Head:10.5m Technical Data Certificate Operating Conditions Max. immersion depth: 5m Liquid temperature up to + 35°C Environmental temperature up to + 40°C Liquid kinematic viscosity: 7 ×10 ~23 ×10 ㎡/s Max. liquid density:...

Send Inquiry
Product Details

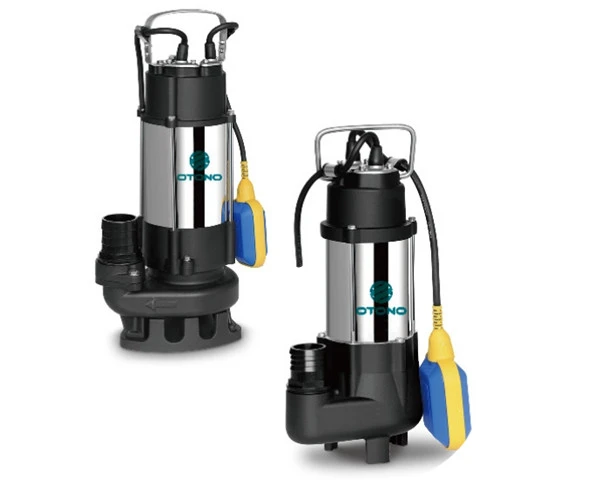

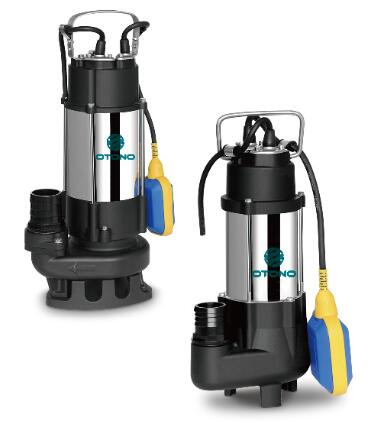

V sewage submersible sewage pump



Performance Range

Max.Flow: 18m³/h

Max.Head:10.5m

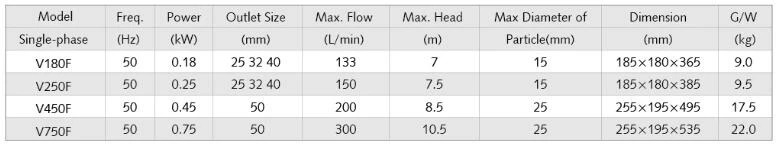

Technical Data



Certificate



Operating Conditions

Max. immersion depth: 5m

Liquid temperature up to + 35°C

Environmental temperature up to + 40°C

Liquid kinematic viscosity: 7 ×10  ~23 ×10  ㎡/s

Max. liquid density: 1.2 ×10   kg/m³

Maximum passage for suspended solids up to 25mm


Application Field

This pump is  widely applied in industry,agriculture,mining,construction,municipal,environmental protection,etc.it is suitalbe for draining water containing particles sich us short fibers,paper scraps,etc,and soft solid,such as muddy water,dirty water,domestic wasterwater,sewage, manure,etc,they are ideal equipment for agriculture irrigation and drainage,pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.




Features

1.Stainless steel casing and rod bolts,beautiful,durable and stable.

2.Opening impeller with good flow ability.

3.The stainless steel shaft extension ,carbide double sides mechanical sealing.


Pump

Pump Body: Cast iron

Motor Bracket: Stainless steel

Impeller: Cast iron or nylon with technopolymer open type

Motor Shaft: Stainless steel

Mechanical Seal: Ceramic – graphite or Sic to graphite


Motor

Electric Motor: Single-phase 230 V- 50 Hz with condenser and thermal overload protector built into the winding.

Insulation: Class B.

Protection: IP X8.

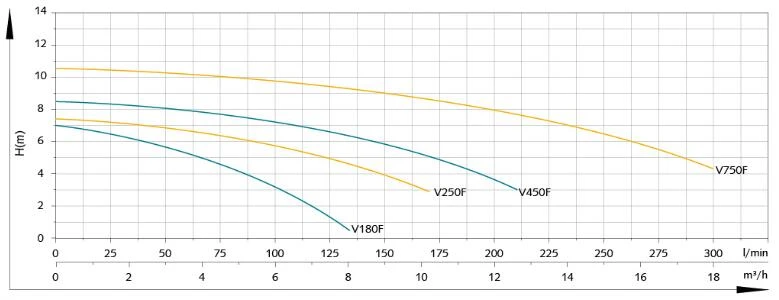

Performance Curve



Package Details

Standard Carton/ Fumigation-free wooden box


Market in present

This pump is a mature and efficient product, major customers are from Ukraine, Zimbabwe,Turkey,Brazil,Kyrgyzstan,Australia,Portugal,Zambia, Tanzania,Indonesia,Uzbekistan,etc.


FAQ

1.How long is the delivery time of your product?

Normal 30 days.


2.Where is your factory located?

Our Marketing Center:Room 3110/3111,Intime City,Jiaojiang District,Taizhou City,Zhejiang Province,China.

Two Manufacturing Base:

a.Zhejiang base: Daxi Town,Wenling County,Taizhou City,Zhejiang Province,China.

b.Jiangxi base :Dingshan Penghuwan Industrial Zone,Pengze Town,Jiujiang City,Jiangxi Province,China.


3.Which payment method do you accept?

A: 30% T/T advance, 70% remaining balance before shipment for container.

B: 100%T/T advance for small order.


4.How is your product quality?

The high quality of our products has been sold to many countries and regions, we received great praise and recognition from our customers.We hope we can have the opportunity to cooperate with you for a long time.


About us

SHANGHAI OTONO MECHANICAL&ELECTRICAL TECHNOLOGY CO.,LTD is a professional water pump manufacturer and has more than fifteen years of experience in manufacturing and exporting water pumps.


Our factory produce more than 70 kinds of water pumps, including solar pumps, deep well pumps, economical DC pumps, submersible sewage pumps, and various kinds of water pump accessories. Every year we invest a large proportion of the funds for the purchase of equipment, new product development and manufacturing molds to ensure product quality and market fit.


Adheres to the "customer-oriented business philosophy, win-win with customers "to deal with everything and attitude; At present, our market is mainly concentrated in Asia, Europe ,Africa,Australia,and our products are trusted by local customers.
