4'' Solar Deep Well Pump

4'' Solar Deep Well Pump

4" solar deep well pump (4SDW/4SDWC) This product is used in deep well, with solar energy, for diameter 4”. The products for pumping water from deep wells can be used for water lifting projects such as rivers, reservoirs, and drainage channels. They can also be used for irrigation of...

Send Inquiry
Product Details

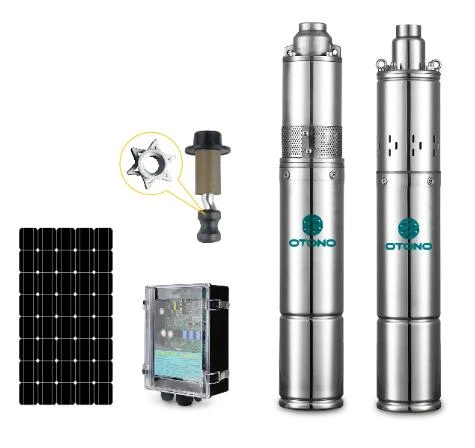

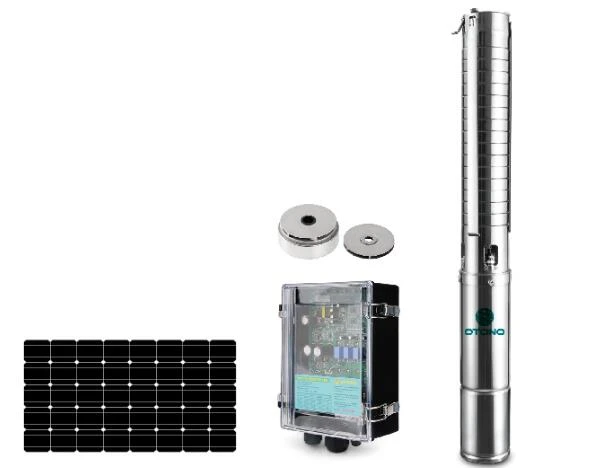

4" solar deep well pump (4SDW/4SDWC)

This product is used in deep well, with solar energy, for diameter 4”.

The products for pumping water from deep wells can be used for water lifting projects such as rivers, reservoirs, and drainage channels. They can also be used for irrigation of farmland, water for humans and animals, and drainage for cities,factories, railways, mines, and construction sites.




Technical Data

Items

Impeller

Solar Panel Power

(w)

Max. flow
(m³/h)

Max. head
(m)

Outlet
(inch)

4SDW3.0/60-D36/500

SCREW

650-850

3

60

1“

4SDW3.6/80-D48/750

SCREW

950-1100

3.6

80

1“

4SDW4.0/100-D72/1000

SCREW

1200-1500

4

100

1“

4SDW4.2/120-D72/1300

SCREW

1400-1600

4.2

120

1“




Itmes

Impeller

Solar Panel Power

(w)

Max. flow
(m³/h)

Max. head
(m)

Outlet
(inch)

4SDWC5.0/28-D24/250

SS304

320-400

5

28

1.5"

4SDWC5.5/38-D36/400

SS304

450-520

5.5

38

1.5"

4SDWC5.5/58-D48/750

SS304

950-1100

5.5

58

1.5"

4SDWC6.0/72-72/900

SS304

1150-1350

5.5

58

1.5"

4SDWC5.0/128-D72/1000

SS304

1300-1500

5

128

1.5"

4SDWC6.5/98-D72/1300

SS304

1300-1500

6.5

98

2"

4SDWC10/30-D48/750

SS304

950-1100

10

30

2"

4SDWC10/44-D72/1000

SS304

1300-1500

10

44

2"

4SDWC10/57-D72/1300

SS304

1400-1600

10

57

1.5"

4SDWC10/100-D90/1500

SS304

2000-2300

10

100

1.5"

4SDWC6.6/156-D90/1500

SS304

2000-2300

10

156

1.5"


Construction Characteristics

4SDW:

1.Max.immersion depth: 70m

2.Minimum well diameter: 4"

3.Pump body: Brass/stainless steel 304

4.Motor body: stainless steel 304

5.Screw:stainless steel 304


4SDWC:

1.Max.immersion depth: 70m

2.Minimum well diameter: 4"

3.Pump body: stainless steel 304

4.Motor body: stainless steel 304


Advantages

1.Controller has MPPT function, which makes pump have high utilization rate of solar energy.

2.Low voltage make creatures and humans are absolutely safe.

3.Saving electricity and human resources. Customers don’t  need to operate pumps or install wires. Particularly useful in regions where electricity is lacking or human resources are expensive.

4.Noiseless.


Application Field


3(001).jpg 4(001).jpg 5(001).jpg


Package Details

Standard Carton/ Fumigation-free wooden box


FAQ

1.Are you a manufacturer, trading company or a third party?

Manufacturer. We have been manufacturing water pump for 12 years.


2.Does your factory accept OEM?

Large quantity can accept OEM.


3.Which payment method do you accept?

A: 30% T/T advance, 70% remaining balance before shipment for container.

B: 100%T/T advance for small order.



4.How do you control the quality of products?

During the production process, we will have quality inspector to follow up and test the materials and various production steps throughout the production process. Before the product is sold, we will conduct a comprehensive inspection to ensure product quality.


5.What about the method of delivery?

By air on DHL/TNT/EMS,Container loading by FOB NingBo or ShangHai port.


Market in present

4SDW/4SDWC is a mature and efficient product, major customers are from Australia,Israel,Jordan,Portugal,South Africa,Zimbabwe,Zambia, Tanzania,Indonesia, Brazil,etc.


After-sale service

Three-year warranty:Non-human issues are replaced within three years, including the controller part and the water pump part.


About us

SHANGHAI OTONO MECHANICAL&ELECTRICAL TECHNOLOGY CO.,LTD is a professional water pump manufacturer and has more than fifteen years of experience in manufacturing and exporting water pumps.


Our factory produce more than 70 kinds of water pumps, including solar pumps, deep well pumps, economical DC pumps, submersible sewage pumps, and various kinds of water pump accessories. Every year we invest a large proportion of the funds for the purchase of equipment, new product development and manufacturing molds to ensure product quality and market fit.


Adheres to the "customer-oriented business philosophy, win-win with customers" to deal with everything and attitude; At present, our market is mainly concentrated in Asia, Europe ,Africa,Australia,and our products are trusted by local customers.


5.jpg 6.jpg


Model Select

A.The power of solar panel = power of pump ×1.3   ,The voltage of solar panel = the voltage of pump

The controller should be matched


B.Select the batteries according to the following formulas:

The use hour of battery = The battery capacity ÷(the machine power÷the battery voltage)×0.6 For example,the machine power is 200W, the battery capacity is 100AH,the voltage is 12V,and the battery is fully charged,then the use hour is:100÷(200÷12)×0.6=3.6hours


C.The battery capacity=

the use hour ÷0.6×(the machine power÷the battery voltage) For example,the machine power is 200W,the battery voltage is 12V,and the battery need to be used for 3.6hours,then the battery capacity is:3.6÷0.6×(200÷12)=100AH
