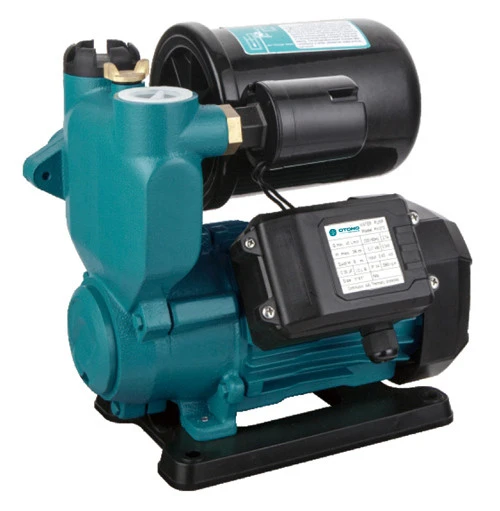

Household Silent Solar Water Pump
Household silent solar water pump (HSS)
This pump is silent pump for home use, energy saving, safety.Household water storage tank water supply can greatly increase the water pressure and keep the stable water.
Suitable for family life, water intake, well water intake, tap water pressure, garden irrigation, vegetable greenhouse watering and aquaculture and other occasions.
It is mainly used for:
1.High-rise buildings, residential water for urban and rural residents
2.Home tap water booster system
Technical Data
|
Item No. |
Solar Panel voltage (VMP) |
Solar panel power (W) |
Max Flow (m³/h) |
Max head (M) |
|
HSS125 |
24/36 |
125 |
1.8 |
24 |
|
HSS250 |
24/36 |
250 |
2.1 |
30 |
|
HSS370 |
36/48 |
370 |
2.4 |
36 |
|
HSS550 |
36/48 |
550 |
2.7 |
42 |
| Built-in controller pump | ||||
|
Item No. |
Solar Panel voltage (VMP) |
Solar panel power (W) |
Max Flow (m³/h) |
Max head (M) |
|
HSSN125 |
24/36 |
125 |
1.8 |
24 |
|
HSSN250 |
24/36 |
250 |
2.1 |
30 |
|
HSSN370 |
36/48 |
370 |
2.4 |
36 |
|
HSSN550 |
36/48 |
550 |
2.7 |
42 |
Construction Characteristics
1.SS304 shaft
2.Pump body: Stainless Steel304
3.Max.Flow：2.7m³/h
4.Motor with copper winding
5.Bearing:C＆U/NSK
Advantages
1.It is environmentally-friendly and has no pollution. power saving, convenient.
2.It saves investments, with easy installation and easy maintenance. It has no need to use a water-storage facility such as a cistern or a water tank on the building top and so on which has saved occupying area and has reduced investment expenses.
3.Occupies a small area, low investment, high efficiency.
4.Reduced maintenance and maintenance costs, and greatly improved pump life.
5.Simple management, security protection, automatic control.
6.High lift with self-priming function, easy installation.
7.Noiseless
Application Field
Package Details
Standard Carton/ Fumigation-free wooden box
FAQ：
1.Which payment method do you accept?
A: 30% T/T advance, 70% remaining balance before shipment for container.
B: 100%T/T advance for small order.
2.Do you have an exhibition abroad?
In the next stage, we will plan to arrange a foreign exhibition,We will also inform you in advance.
3.What after-sales service can you get after buying your product?
Non-human issues are replaced within three years, including the controller part and the water pump part.
Market in present
HSS is a mature and efficient product, major customers are from South Africa,Australia, Portugal,Zimbabwe,Angola,Egypt,Singapore.etc.
After-sale service
Three-year warranty：Non-human issues are replaced within three years, including the controller part and the water pump part.
Model Select
A.The power of solar panel = power of pump ×1.3 ,The voltage of solar panel = the voltage of pump
The controller should be matched
B.Select the batteries according to the following formulas:
The use hour of battery = The battery capacity ÷(the machine power÷the battery voltage)×0.6 For example,the machine power is 200W, the battery capacity is 100AH,the voltage is 12V,and the battery is fully charged,then the use hour is:100÷(200÷12)×0.6=3.6hours
C.The battery capacity=
the use hour ÷0.6×(the machine power÷the battery voltage) For example,the machine power is 200W,the battery voltage is 12V,and the battery need to be used for 3.6hours,then the battery capacity is:3.6÷0.6×(200÷12)=100AH
