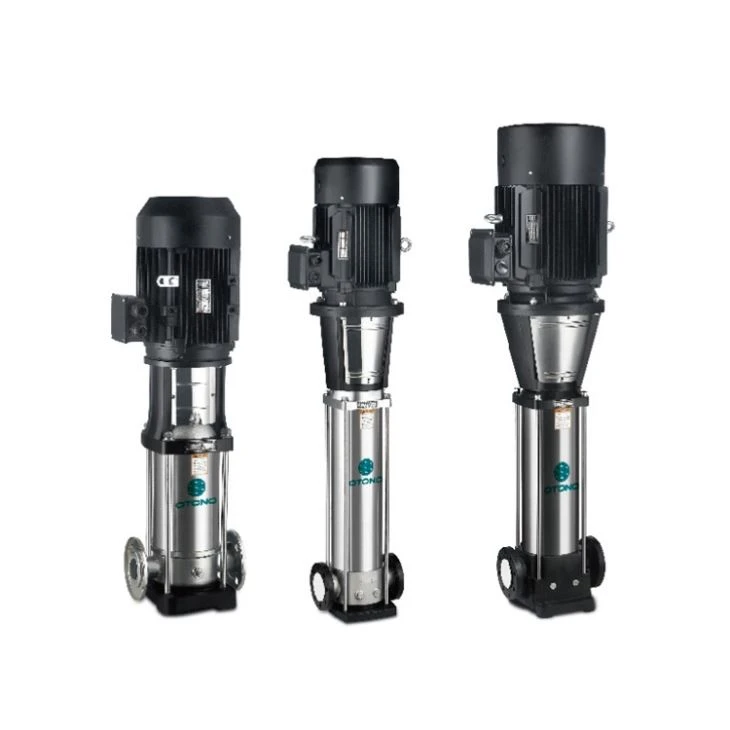

Vertical Multi-stage Booster Pump

Vertical multi-stage booster pump

Application limits of vertical pump

1.Medium temperature :normal type:0°c~68°c,  hot water type:0°c~120°c.

2.Ambient temperature:+40°c.

3.Max ambient pressure:1.0MPa.

4.Advisable to use motor of higher power in case that the density or viscosity of medium is above that of water.

5.PH:5 to 8.

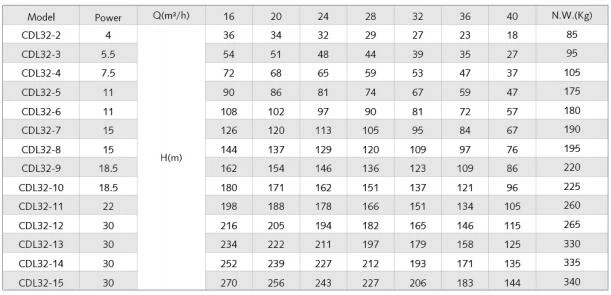

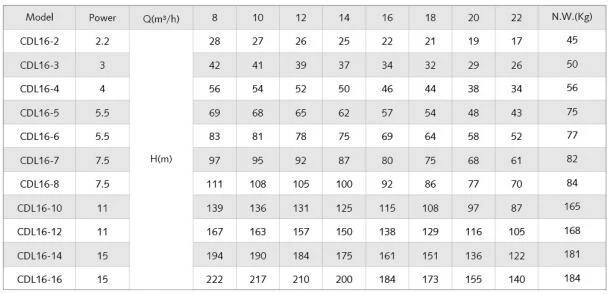

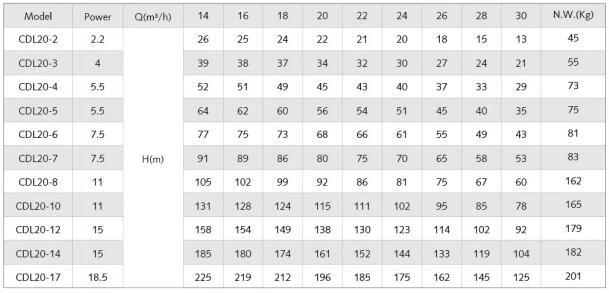

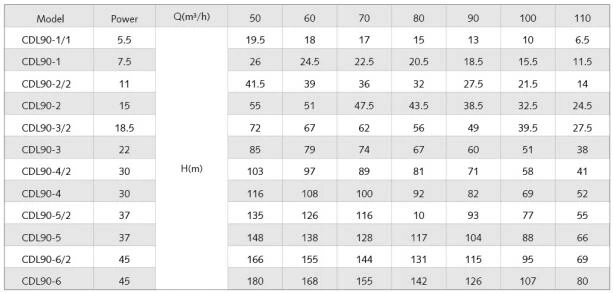

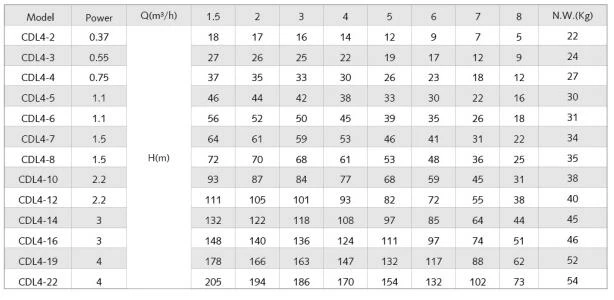

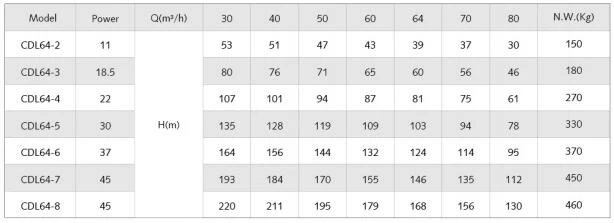

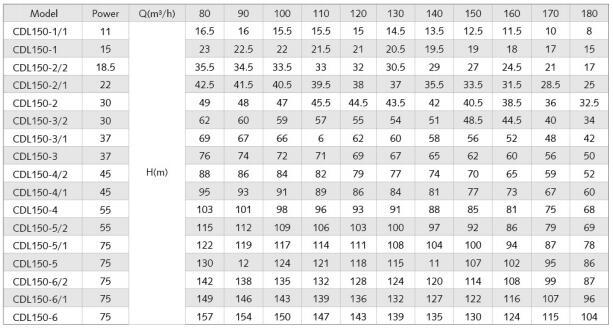

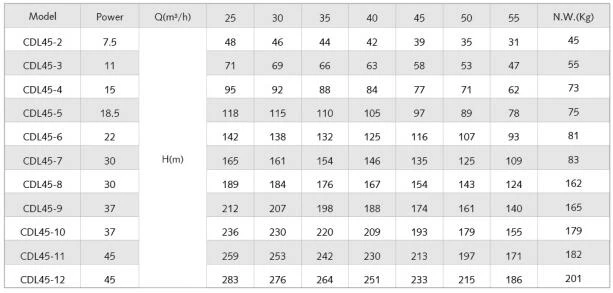

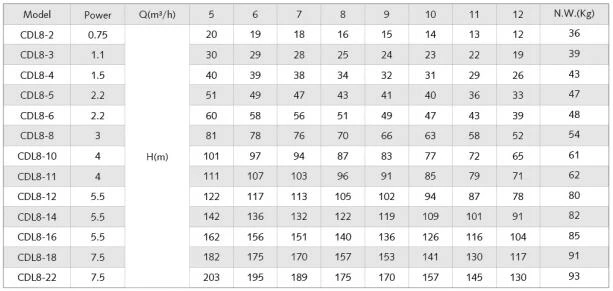

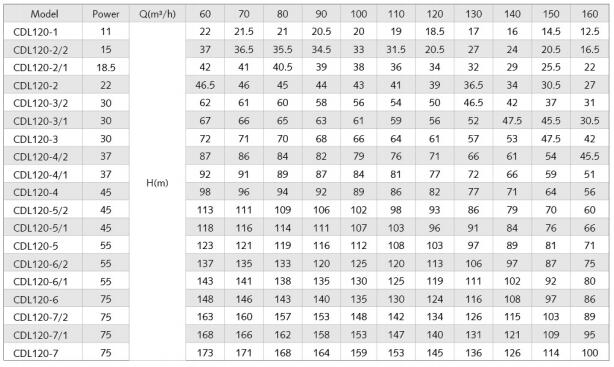

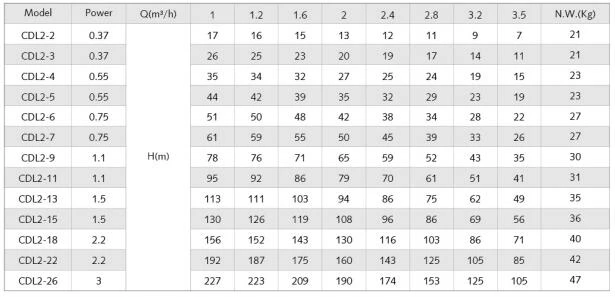

Technical Data

Certificate

Operating Conditions

Submersible depth 5m

Liquid temperature up to +40℃

Ambient temperature up to +40℃

Max.working pressure：6 bar

Passage of suspended solid up to 55mm

Application Field

Water supply: Water filtering and water delivery in water plants,water delivery for sub-water plants, pressure boost in main pipelines and in high-rise buildings.

Industrial pressure boost, flow water system, cleaning system,high-pressure washing system, fire extinguishing system.

Industrial liquid delivery: cooling and air-conditioning systems,boiler water supply, condensation system, machine tool, transmission of the acidand alkali mediums.

Features

The premium hydraulic model and advanced workmanship greatly improve the pumps' performance and exend the service life.

Adopting alloy and fluorin rubber for the mechanical seal, which ensures the pumps'reliable operation and endures high temperature of transmission medium.

As the overflowing part of pump is stamped and welded by stainless  steel plate, which is suitable for slightly aggressive liquids.

Compact design, small in size, light weight, low noise, excellent energy saving performance, easy to maintenance.

Inlet and outlet of the pump stand in the same line with the pump base, which can be used directly in the pipelines.

Clients can allocate the motor based in their own needs.

We provide the intelligent protector to avoid dry running, default phase and over loading of the pump to meet customers' demand.

Motor

2 pole induction motor.

1-phase/3-phase,50Hz/60Hz.

Insulation：class E.

Protection：IP X8.

Single-phase with capacitor and thermal overload protection.

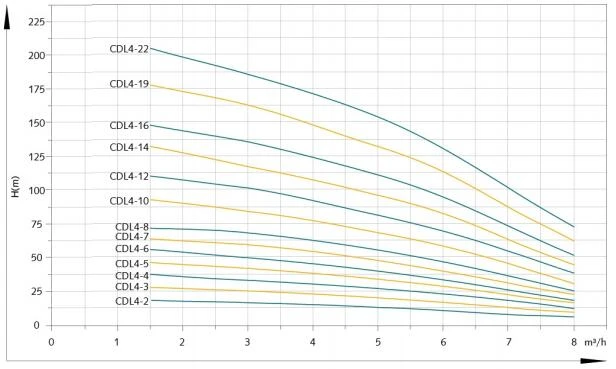

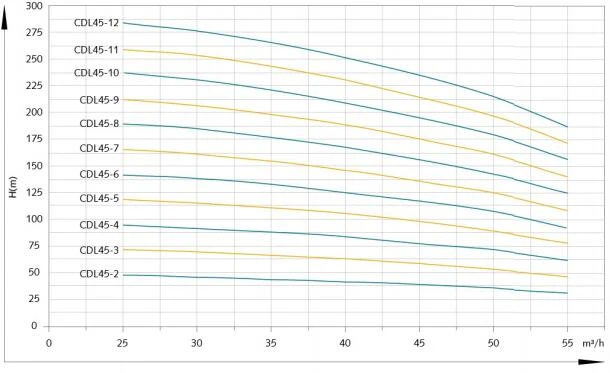

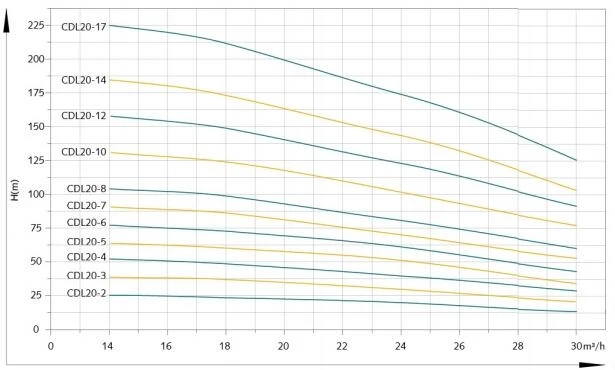

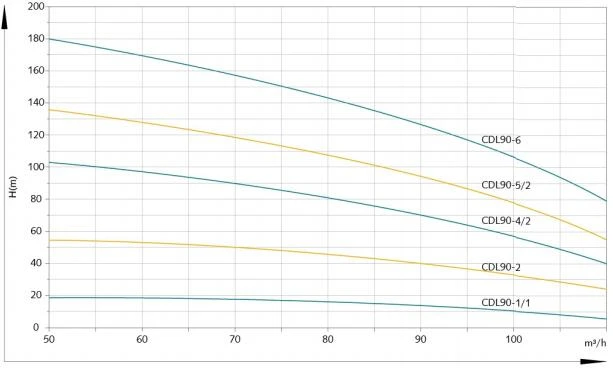

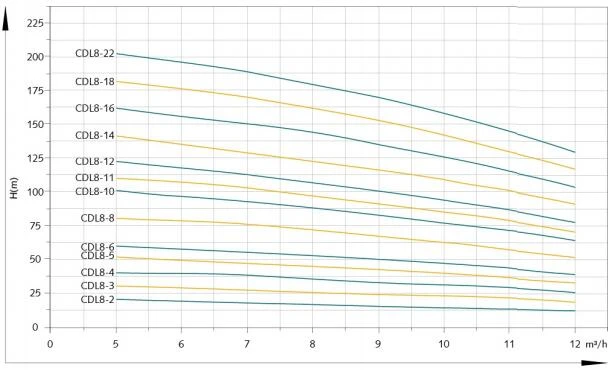

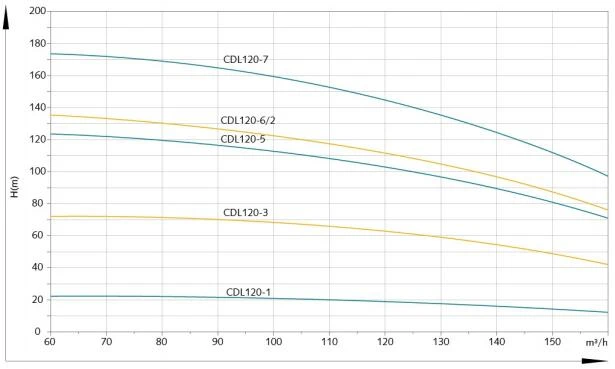

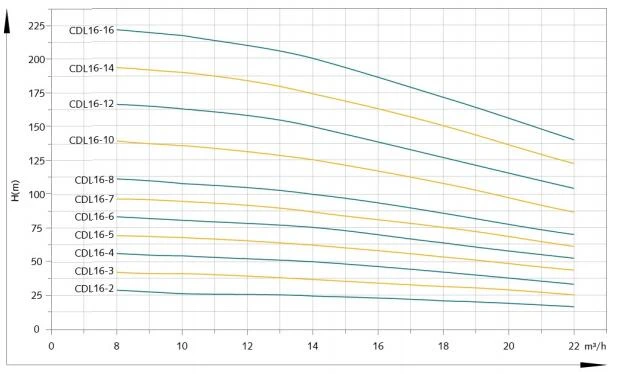

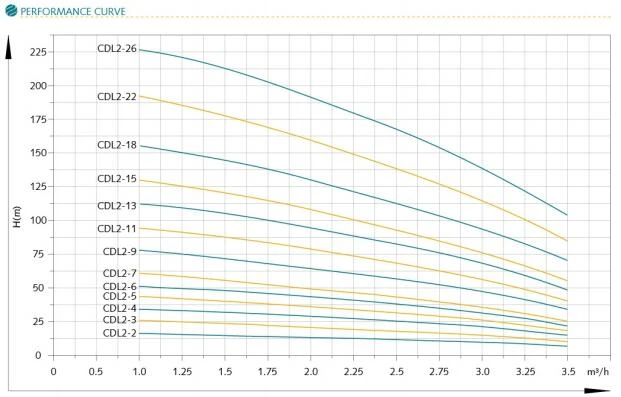

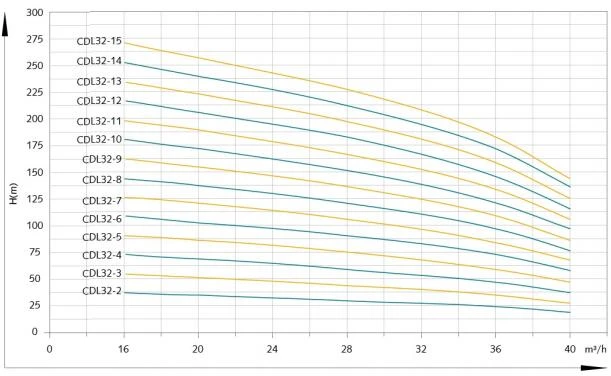

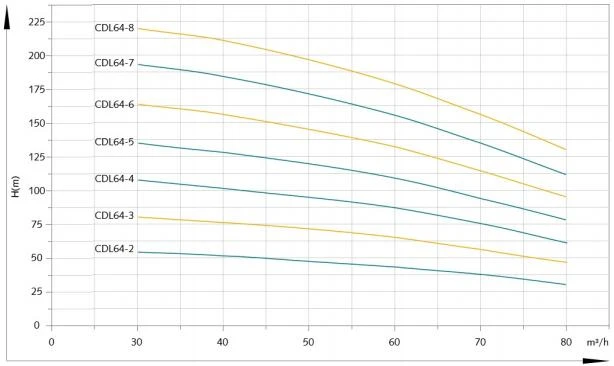

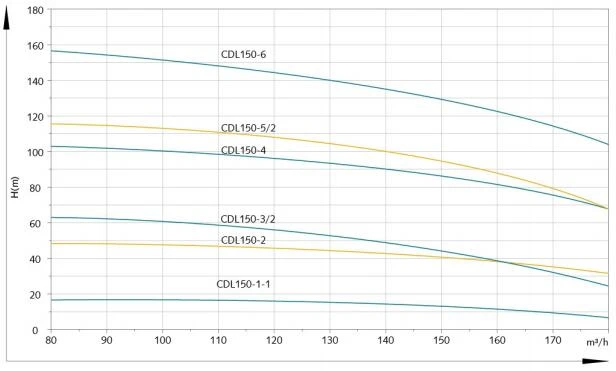

Performance Curve

Package Details

Standard Carton/ Fumigation-free wooden box

Market in present

This pump is a mature and efficient product, major customers are from Tajikistan,Ukraine, Zimbabwe,Turkey,Brazil,Kyrgyzstan,Australia,Portugal,Zambia,Tanzania,Indonesia,Uzbekistan,etc.

FAQ

1.What is the features of your factory?

Our factory is Specializing in the production of solar pump and DC pump-based pump categories, focusing on the pump industry for 12 years.

2.Where is your factory located?

Our Marketing Center：Room 3110/3111,Intime City,Jiaojiang District,Taizhou City,Zhejiang Province,China.

Two Manufacturing Base:

a.Zhejiang base: Daxi Town,Wenling County,Taizhou City,Zhejiang Province,China.

b.Jiangxi base :Dingshan Penghuwan Industrial Zone,Pengze Town,Jiujiang City,Jiangxi Province,China.

3.Which payment method do you accept?

A: 30% T/T advance, 70% remaining balance before shipment for container.

B: 100%T/T advance for small order.

4.How is your product quality?

The high quality of our products has been sold to many countries and regions, we received great praise and recognition from our customers.We hope we can have the opportunity to cooperate with you for a long time.
