Household Hot Water Circulation Booster Pump

Household Hot Water Circulation Booster Pump

Household hot water circulation booster pump Performance Range Max.Flow: 10m³/h Max.Head:12m Technical Data Certificate Operating Conditions Operating range: from 0 to 10 m³/h with head up to 12 metres. Liquid temperature range: 2℃-110℃. Ambient temperature range: 0℃-40℃. Pumped liquid...

Send Inquiry
Product Details

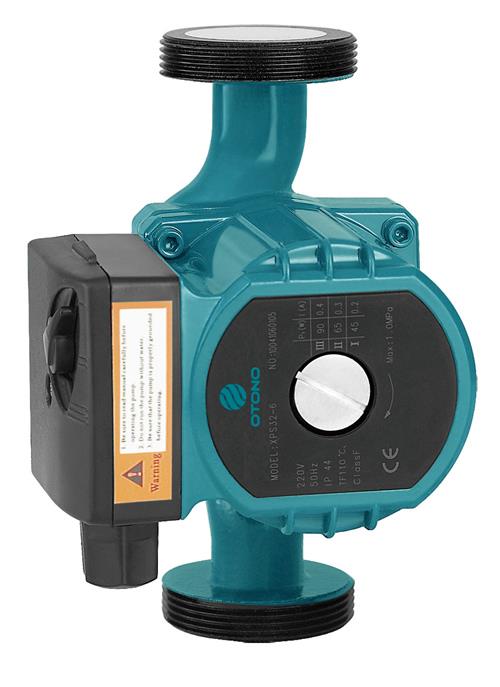

Household hot water circulation booster pump



Performance Range

Max.Flow: 10m³/h

Max.Head:12m

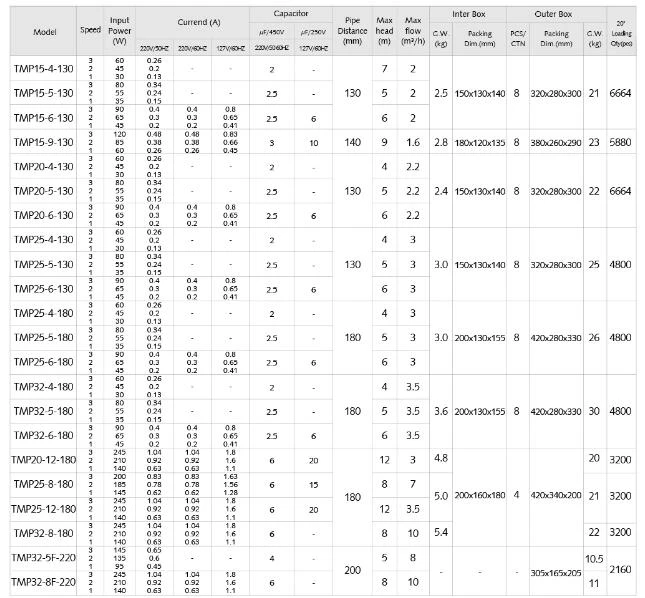

Technical Data



Certificate



Operating Conditions

Operating range: from 0 to 10 m³/h with head up to 12 metres.

Liquid temperature range: 2℃-110℃.

Ambient temperature range: 0℃-40℃.

Pumped liquid characteristics: clean, free from solids and mineral oils, non viscous, chemically neutral, close to the characteristics of water (max. 30% glycol).

Maximum working pressure: 10bar(1000kPa).

Protection level: IP44.

Voltage/Herz: 110V~240V; 50/60Hz.

Insulation class: H.

Installation: with motor axis horizontal.

PH: 6.5 to 8.5.


Application Field

TMP circulation pumps are designed for circulation of liquids in heating and air-conditioning systems,pumps with bronze or stainless steel housing are aslo suitable for use in hot- water serive systems,Examples of typical applications are mix water underfloor heating system,air energy hot water circulation system,solar hot water circulation system.etc.




Features

Low noise

No leakage


Pump

1.Pump body: Cast iron.

2.Motor bracket: Aluminum.

3.Impeller: Nylon.

4.Copper winding.


Motor

2-pole induction motor: 50Hz.

Insulation: Class B.

Protection: IP 44.

With capacitor and thermal overload protection.


Package Details

Standard Carton/ Fumigation-free wooden box


Market in present

This pump is a mature and efficient product, major customers are from Ukraine, Zimbabwe,Turkey,Brazil,Kyrgyzstan,Australia,Portugal,Zambia,Tanzania,Indonesia Kazakhstan,Uzbekistan,etc.


FAQ

1.Where is your factory located?

Our Marketing Center:Room 3110/3111,Intime City,Jiaojiang District,Taizhou City,Zhejiang Province,China.

Two Manufacturing Base :

a.Zhejiang base: Daxi Town,Wenling County,Taizhou City,Zhejiang Province,China.

b.Jiangxi base :Dingshan Penghuwan Industrial Zone,Pengze Town,Jiujiang City,Jiangxi Province,China


2.How long is the delivery time of your product?

Normal 30 days.


3.Which payment method do you accept?

A: 30% T/T advance, 70% remaining balance before shipment for container.

B: 100%T/T advance for small order.


4.How is your product quality?

The high quality of our products has been sold to many countries and regions, we received great praise and recognition from our customers.We hope we can have the opportunity to cooperate with you for a long time


About us

SHANGHAI OTONO MECHANICAL&ELECTRICAL TECHNOLOGY CO.,LTD is a professional water pump manufacturer and has more than fifteen years of experience in manufacturing and exporting water pumps.


Our factory produce more than 70 kinds of water pumps, including solar pumps, deep well pumps, economical DC pumps, submersible sewage pumps, and various kinds of water pump accessories. Every year we invest a large proportion of the funds for the purchase of equipment, new product development and manufacturing molds to ensure product quality and market fit.


Adheres to the "customer-oriented business philosophy, win-win with customers "to deal with everything and attitude; At present, our market is mainly concentrated in Asia, Europe ,Africa,Australia,and our products are trusted by local customers.
