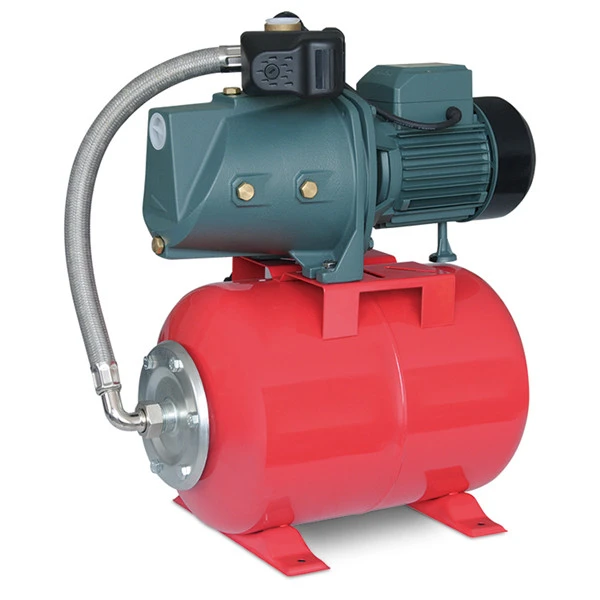

Domestic Self-priming Jet Surface Pump

Domestic self-priming jet surface pump

Performance Range

Max.Flow: 6m³/h

Max.Head: 52m

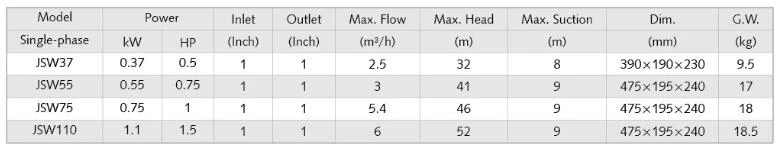

Technical Data

Certificate

Operating Conditions

1.Suction lift up to 9m.

2.Liquid temperature up to 40℃.

3.Ambient temperature up to+ 40℃.

4.Max. working pressure: 6 bar.

5.Voltage fluctuation should not exceed 10% of rated value.

6.PH: 6.5 to 8.5.

Application Field

1.Clean water without abrasive particles.

2.Domestic use, irrigation of gardens and allotments etc.

3.High head.

4.Suitable for water lifting, distribution with small or medium pressure sets.

5.Installed in enclosed places, or at least protected against inclement weather.

Features

1.Complete models.

2.Copper impeller,staineless cover pump.

3.Pump body with installation foot set.

Pump

Pump body: Cast iron.

Motor bracket: Aluminum.

Impeller: Brass.

Shaft with rotor: Stainless steel or CS45#.

Mechanical seal: Ceramic-Graphite or Silicon carbide-Graphite.

Copper winding.

Motor

2-pole induction motor: 50Hz.

Insulation: Class B.

Protection: IP 44.

With capacitor and thermal overload protection.

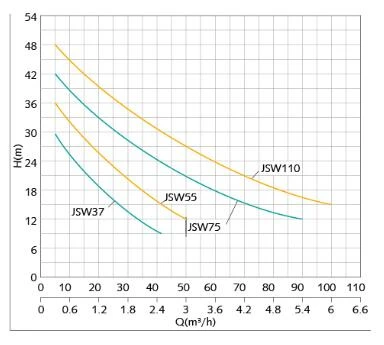

Performance Curve

Package Details

Standard Carton/ Fumigation-free wooden box

Market in present

This pump is a mature and efficient product, major customers are from Ukraine, Zimbabwe,Turkey,Brazil,Kyrgyzstan,Australia,Portugal,Zambia, Tanzania,Indonesia Kazakhstan,Uzbekistan,etc.
