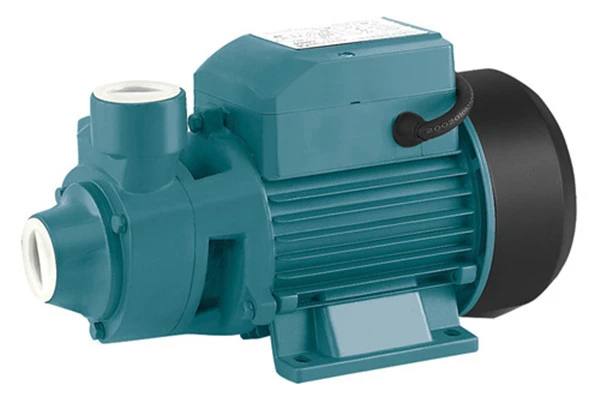

Domestic Peripheral Surface Pump

Domestic peripheral surface pump

Performance Range

Max.Flow: 3 m³/h

Max.Head: 60m

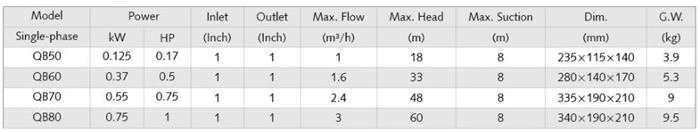

Technical Data

Certificate

Operating Conditions

1.Suction head up to 8m.

2.Liquid temperature up to +40℃.

3.Ambient temperature up to +40℃.

4.Max.working pressure: 6 bar.

5.Voltage fluctuation should not exceed 10% of rated value.

6.PH: 6.5 to 8.5.

Application Field

Suitable for thansferring water with clean water without abrasive particles, non-aggressive liquid.

Domestic use.

In particular for delivering water in combination with small pressure sets and for irrigation.

Installed in enclosed places, or at least protected against inclement weather.

Pump

1.Pump body: Cast iron.

2.Motor bracket: Aluminum.

3.Impeller: Brass.

4.Shaft with rotor: Stainless steel or CS45#.

5.Mechanical seal: Ceramic-Graphite.

6.Copper winding.

Motor

2-pole induction motor: 50Hz.

Insulation: Class B.

Protection: IP 44.

With capacitor and thermal overload protection.

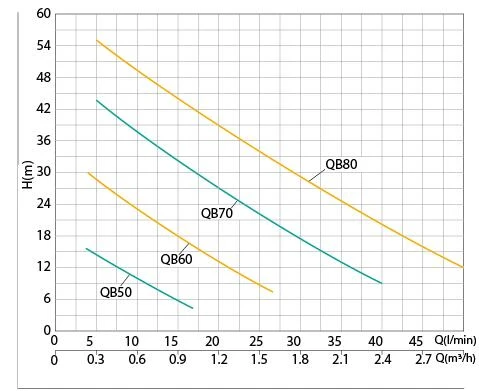

Performance Curve

Package Details

Standard Carton/ Fumigation-free wooden box

Market in present

This pump is a mature and efficient product, major customers are from Ukraine, Zimbabwe,Turkey,Brazil,Kyrgyzstan,Australia,Portugal,Zambia, Tanzania,Indonesia,Kazakhstan,Uzbekistan,etc.
