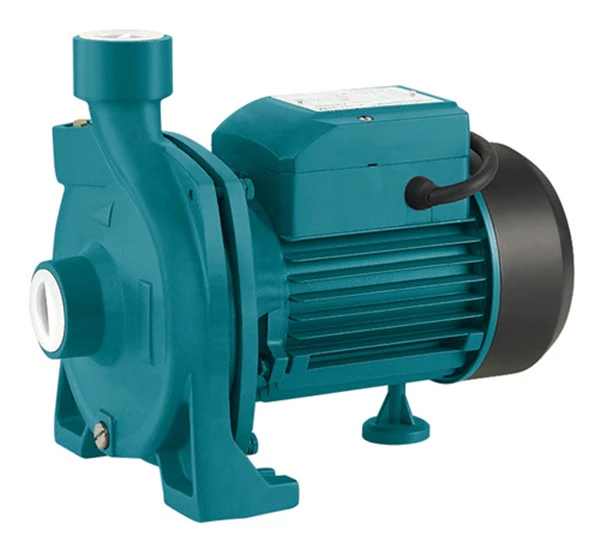

Domestic Centrifugal Surface Pump

Domestic centrifugal surface pump

Performance Range

Max.Flow: 8m³/h

Max.Head: 59m

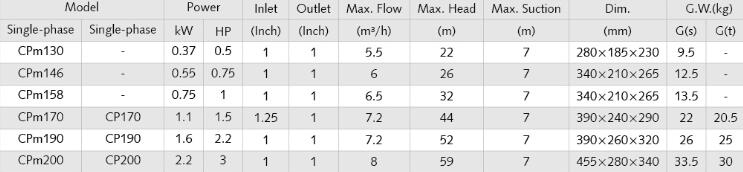

Technical Data

Certificate

Operating Conditions

1.Suction head up to 7m.

2.Liquid temperature up to +40℃.

3.Ambient temperature up to +40℃.

4.Max.working pressure: 6 bar.

5.Voltage fluctuation should not exceed 10% of rated value.

6.PH: 6.5 to 8.5.

Application Field

Suitable for use with clean water with little impurities, non corrosive liquid.

Domestic use,agriculture and irrigation.

Installed in enclosed places, or at least protected against inclement weather.

Features

Single sunction centrifucal pump ,with high efficiency.

Copper impeller,stable performance.

High head ,small flaw rate.

Pump

1.Pump body: Cast iron.

2.Motor bracket: Aluminum.

3.Impeller: Brass.

4.Shaft with rotor: Stainless steel or CS45#.

5.Mechanical seal: Ceramic-Graphite.

6.Copper winding.

Motor

2-pole induction motor:50HZ

Insulation:ClassB

Protection:IP44

Single-phase with capacitor and thermal overload protection

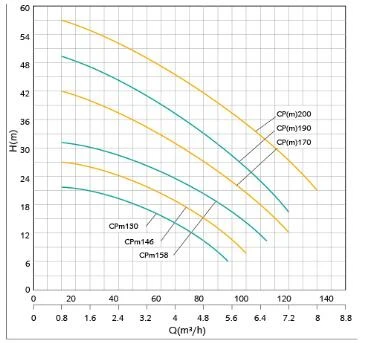

Performance Curve

Package Details

Standard Carton/ Fumigation-free wooden box

Market in present

This pump is a mature and efficient product, major customers are from Zimbabwe,the United States,turkey,brazil,kyrgyzstan, Australia,Portugal,South Africa,Zambia, Tanzania, Middle East,Kazakhstan,Uzbekistan, etc.

FAQ

1.How is your product quality?

The high quality of our products has been sold to many countries and regions, we received great praise and recognition from our customers.We hope we can have the opportunity to cooperate with you for a long time.

2.Which shipping port do you use more?

Ningbo or Shanghai port.

3.Which payment method do you accept?

A: 30% T/T advance, 70% remaining balance before shipment for container.

B: 100%T/T advance for small order.

4.Can you provide certificate of origin?

We can give you a certificate of origin for your order.
