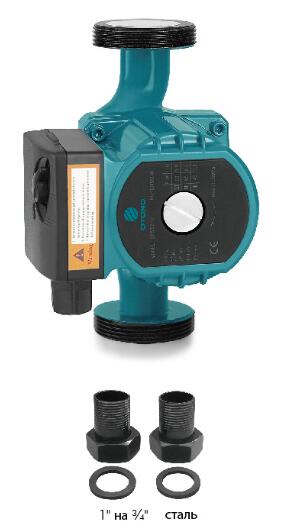

TMP Three Speed Circulating Water Pump

TMP Three speed circulating water pump

Performance Range

Max.Flow: 10m³/h

Max.Head：12m

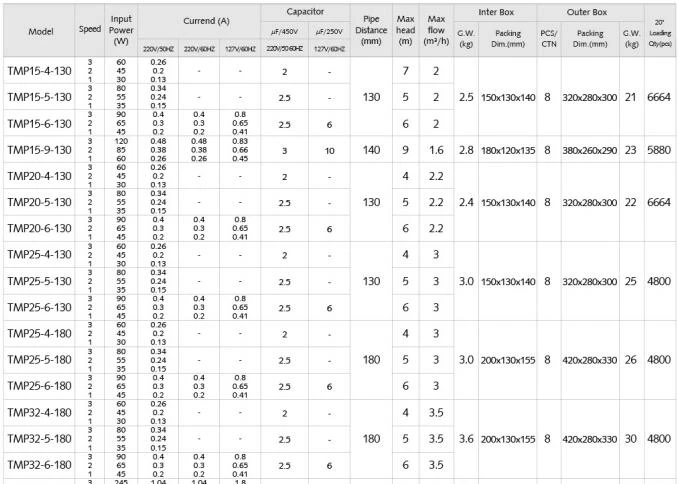

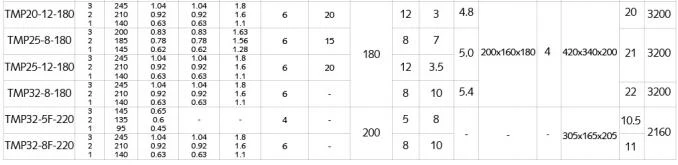

Technical Data

Certificate

Operating Conditions

1.Liquid temperature range: 2℃-110℃.

2.Maximum Ambient temperature : +40℃.

3.Maximum working pressure: 10bar(1000kPa).

4.Protection level: IP44.

5.Mains connection:220V/50HZ,220V/60HZ,127V/60HZ.

6.Insulation class: H.

7.Pumped liquid characteristics: clean, free from solids and mineral oils, non viscous, chemically neutral, close to the characteristics of water.

8.Installation: the motor shaft must be kept in horizontal direction.

9.PH: 6.5 to 8.5.

Application Field

TMP circulation pumps are designed for circulation of liquids in heating and air-conditioning systems,pumps with bronze or stainless steel housing are aslo suitable for use in hot- water serive systems,Examples of typical applications are mix water underfloor heating system,air energy hot water circulation system,solar hot water circulation system.etc.

Features

3-speed adjustment

Low noise

No leakage

Pump

1.Pump body: Cast iron

2.Motor bracket: Aluminum

3.Impeller: Nylon

4.Copper winding

Motor

2-pole induction motor: 50Hz.

Insulation: Class B.

Protection: IP 44.

With capacitor and thermal overload protection.

Package Details

Standard Carton/ Fumigation-free wooden box

Market in present

This pump is a mature and efficient product, major customers are from Tajikistan,Laos,Afghanistan, Uzbekistan,Ukraine, Zimbabwe,the United States,Turkey,Brazil,Kyrgyzstan,Indonesia,Uzbekistan,etc.

FAQ

1.Where is your factory located?

Our Marketing Center：Room 3110/3111,Intime City,Jiaojiang District,Taizhou City,Zhejiang Province,China.

Two Manufacturing Base:

a.Zhejiang base: Daxi Town,Wenling County,Taizhou City,Zhejiang Province,China.

b.Jiangxi base :Dingshan Penghuwan Industrial Zone,Pengze Town,Jiujiang City,Jiangxi Province,China.

2.What is the features of your factory?

Our factory is Specializing in the production of solar pump and DC pump-based pump categories, focusing on the pump industry for 12 years.

3.What about the method of delivery?

By air on DHL/TNT/EMS,Container loading by FOB NingBo or ShangHai port.

4.Is your price competitive?

Only high quality pump we supply. Surely we will give you best factory price based on superior product and service.
