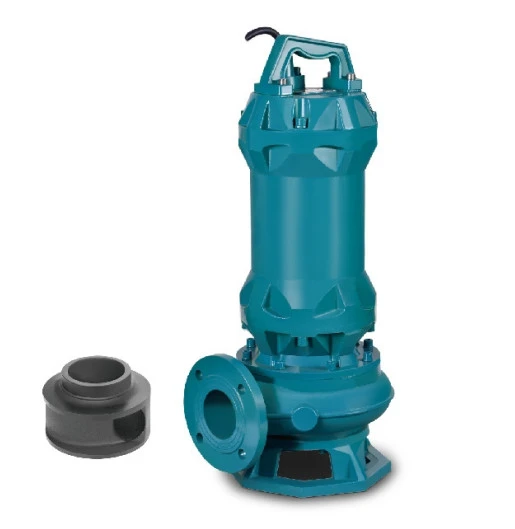

WQA Commercial Sewage Submersible Pump

WQA Commercial sewage submersible pump

Performance Range

Max.Flow: 150m³/h

Max.Head:35m

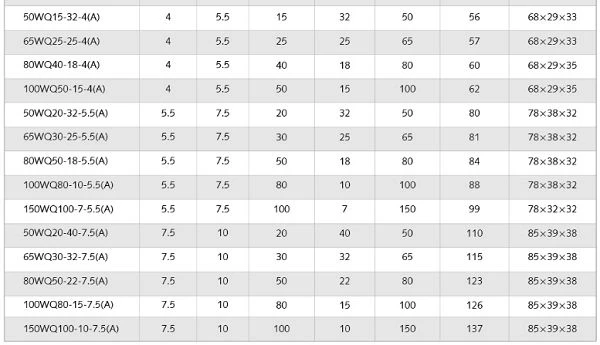

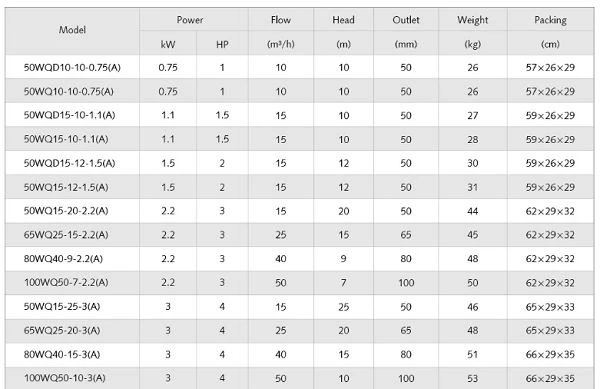

Technical Data

Certificate

Operating Conditions

Submersible depth 10m.

Liquid temperature up to +40℃.

Ambient temperature up to +40℃.

Max.working pressure：6 bar.

Passage of suspended solid up to 35mm.

Application Field

Domestic/Commercial/Industrial use.

Drainage of sewage from the building basements, hotel industry waste water from factories.

Pumping surface and draining water from the garages and sprinkler systems.

Being equipped with a double-channel impeller.

Features

1.Large power submersible sewage pump,the standard flange outlet.

2.Double channel impeller ,good flowing capacity,excellent hydraulic performance.

3.Stainless steel shaft extension and carbide double sides mechanical sealing.

Pump

Pump body：Cast iron.

Motor bracket：Cast iron.

Impeller：Cast iron.

Motor shaft：SS420 or CS45#.

Mechanical seal：Ceramic-Graphite, Silicon Carbide-Carbide alloy.

Motor

2/4 pole induction motor.

1-phase/3-phase, 50Hz/60Hz.

Insulation：class E.

Protection：IP X8.

Single-phase with capacitor and thermal overload protection.

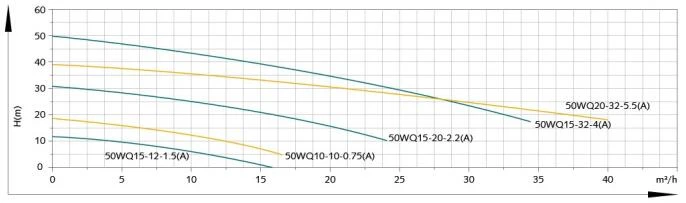

Performance Curve

Package Details

Standard Carton/ Fumigation-free wooden box

Market in present

This pump is a mature and efficient product, major customers are from Tajikistan,Ukraine, Zimbabwe,Turkey,Brazil,Kyrgyzstan,Australia,Portugal,Indonesia,Zambia,Tanzania,Uzbekistan,etc.

FAQ

1.How do you control the quality of products?

During the production process, we will have quality inspector to follow up and test the materials and various production steps throughout the production process. Before the product is sold, we will conduct a comprehensive inspection to ensure product quality.

2.Where is your factory located?

Our Marketing Center：Room 3110/3111,Intime City,Jiaojiang District,Taizhou City,Zhejiang Province,China.

Two Manufacturing Base:

a.Zhejiang base: Daxi Town,Wenling County,Taizhou City,Zhejiang Province,China.

b.Jiangxi base :Dingshan Penghuwan Industrial Zone,Pengze Town,Jiujiang City,Jiangxi Province,China.

3.Which payment method do you accept?

A: 30% T/T advance, 70% remaining balance before shipment for container.

B: 100%T/T advance for small order.

4.What is the features of your factory?

Our factory is Specializing in the production of solar pump and DC pump-based pump categories, focusing on the pump industry for 12 years.
