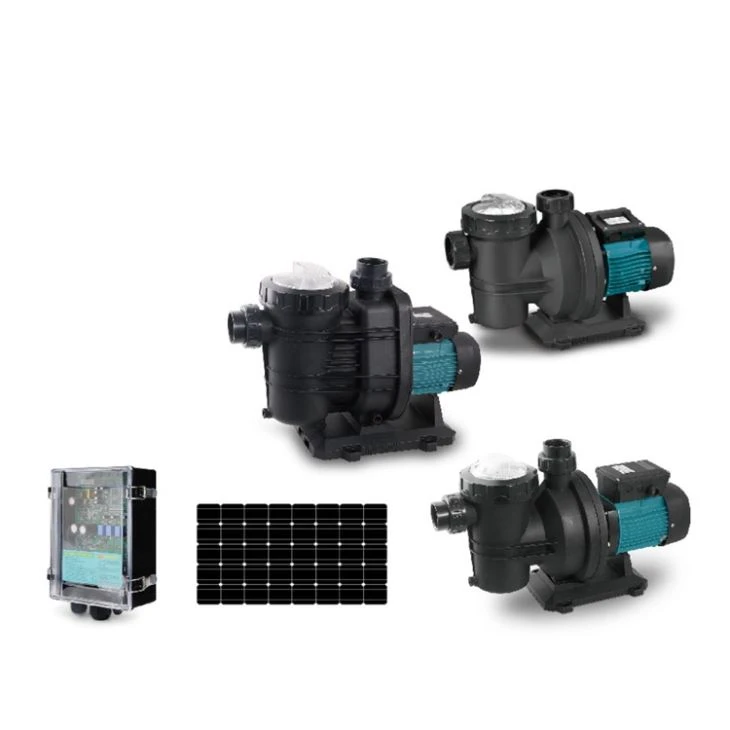

Solar Animal Farming Filter Pump

Solar Animal Farming Filter Pump

Solar animal farming filter pump (SAP) This product is mainly used for irrigation and animal feeding water supply, plays a role in water circulation, water oxygen supply, and water filtration. Security:It is all-round automatic protected by the controller , Avoid burning, overload, motor...

Send Inquiry
Product Details

Solar animal farming filter pump (SAP)

This product is mainly used for irrigation and animal feeding water supply, plays a role in water circulation, water oxygen supply, and water filtration.

Security:It is all-round automatic protected by the controller , Avoid burning, overload, motor disconnection, etc.

Economical and Automatic:Saving electricity and human resources. Customers don’t  need to operate pumps or install wires. Particularly useful in regions where electricity is lacking or human resources are expensive.

High technique products adopting MPPT and DSP chip technique.




Technical Data

Item No.

Impeller

Solar Panel voltage

(VMP)

Solar panel power

(W)

Max Flow

(m³/h)

Max head

(M)

Outlet

(IN)

Carton Size

(CM)

Weight

(KG)

SAP17/15-D72/500

PLASTIC

72

650-750

17

15

2"

56*29*37

17

SAP21/19-D72/900

PLASTIC

72

1000-1300

21

19

2"

60*29*37

21

SAP31/19-D72/1200

PLASTIC

72

1400-1600

31

19

3"

67*32*45

26


Construction Characteristics

1. AISI 304 shaft

2. Motor with copper winding

3. Built-in thermal protector for single phase motor

4. Insulation class:B

5. Protection class:IP58

6. Bearing:C&U/NSK

7. Filterable impurities:feather, small solid particles etc.


Advantages

1. 100% copper wire, cold-rolled silicon steel sheet.

2. Low voltage make creatures and humans are absolutely safe.

3. High-quality materials and mature manufacturing processes guarantee a longer service life.

4. Saving human resources ,no need for personnel to take care of it,no need use diesel oil ,no need to use electrified wire netting.

5. Application innovation Compared with the traditional alternating current machine, the efficiency is improved 25% by the permanent magnetism, direct current, brushless, non-sensor motor.

6. Structure innovation convenient installation and environmental protection.


Application Field


3(001).jpg 4(001).jpg


5(001).jpg 6(001).jpg




Package Details

Standard Carton/ Fumigation-free wooden box


FAQ

1.Are you a manufacturer, trading company or a third party?

Manufacturer. We have been manufacturing water pump for 12 years.


2.Which payment method do you accept?

A: 30% T/T advance, 70% remaining balance before shipment for container.

B: 100%T/T advance for small order.


3.What after-sales service can you get after buying your product?

Non-human issues are replaced within three years, including the controller part and the water pump part.



4.About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

The warranty of our products is 3 years, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.



5.Where is your factory located?

Our Marketing Center:Room 3110/3111,Intime City,Jiaojiang District,Taizhou City,Zhejiang Province,China.

Two Manufacturing Base :

A.Zhejiang base: Daxi Town,Wenling County,Taizhou City,Zhejiang Province,China.

B.Jiangxi base :Dingshan Penghuwan Industrial Zone,Pengze Town,Jiujiang City,Jiangxi Province,China.


Market in present

SAP is a mature and efficient product, major customers are from the Spain,Australia, Portugal, South Africa, Zimbabwe,Ukraine, Tanzania, Middle East, etc.


After-sale service

Three-year warranty:Non-human issues are replaced within three years, including the controller part and the water pump part.


About us

SHANGHAI OTONO MECHANICAL&ELECTRICAL TECHNOLOGY CO.,LTD is a professional water pump manufacturer and has more than fifteen years of experience in manufacturing and exporting water pumps.


Our factory produce more than 70 kinds of water pumps, including solar pumps, deep well pumps, economical DC pumps, submersible sewage pumps, and various kinds of water pump accessories. Every year we invest a large proportion of the funds for the purchase of equipment, new product development and manufacturing molds to ensure product quality and market fit.


Adheres to the "customer-oriented business philosophy, win-win with customers" to deal with everything and attitude; At present, our market is mainly concentrated in Asia, Europe ,Africa,Australia,and our products are trusted by local customers.


5.jpg 6.jpg


Model Select

A.The power of solar panel = power of pump ×1.3, The voltage of solar panel = the voltage of pump

The controller should be matched


B.Select the batteries according to the following formulas:

The use hour of battery = The battery capacity ÷(the machine power÷the battery voltage)×0.6 For example,the machine power is 200W, the battery capacity is 100AH,the voltage is 12V,and the battery is fully charged,then the use hour is:100÷(200÷12)×0.6=3.6hours


C.The battery capacity=

the use hour ÷0.6×(the machine power÷the battery voltage) For example,the machine power is 200W,the battery voltage is 12V,and the battery need to be used for 3.6hours,then the battery capacity is:3.6÷0.6×(200÷12)=100AH
